ADJUSTABLE GAS BLOCKS, BLEED OFF



     2 CLAMPING METHODS      2 SS FINISHES

  Set Screw       Stainless, Melonite -    SABO-DI-750SM

  Clamp On        Stainless, Melonite -    SABO-DI-750CM

  Clamp On        Stainless, Matte    -    SABO-DI-750CS



THREE MODES OF OPERATION:

STANDARD:   all possible gas is directed at the carrier through the gas tube


RESTRICTED: gas pressure to the carrier is regulated by blocking the gas port


BLEED OFF:   pressure regulated by directing excess gas forward and out

REVIEWS

Pew Pew Tactical:
Superlative Arms Gas Block Review



Major Pandemic:
Superlative Arms AR15 Piston System Review with Gas Block info



Why should I buy an Adjustable AR Gas Block

PATENTED The Superlative Arms patented “Bleed Off”, direct impingement, gas block for the AR15 platform adjusts the gas flow by bleeding the gas out of the block instead of restricting the flow like conventional adjustable blocks.

RECOIL REDUCTION Gas pressure from the barrel is reduced to the amount required to drive the bolt carrier by bleeding gas out of the block allowing the system to run much cleaner, cooler, with less recoil.

NO WEAR The gas adjustment screw does not restrict the gas flow so there is no erosion or seizing of the screw / no loss of detent due to carbon build up. Although it is removable, there is a safety mechanism which prevents unintentionally backing the screw all the way out.

SUPPRESSORS When using Short Barreled Rifles and / or Suppressors the bleed off port allows the excessive pressure to be exhausted forward and out of the block, reducing blow back. Use this gas block for any over gassed Armalite Rifle.

SPECIFICATIONS:

  • Direct Impingement

  • 416 Stainless Steel (SS)

  • QPQ Melonite or Stainless Steel matte finish

  • .750" AR barrels

  • 1.68 Ounces

  • 1.00" Long

  • Choose Clamp On OR Solid Set Screw Attachment Set screw attachment needs a dimpled barrel

  • Gas Adjustment:  (Patent Pending) 30 locked Positions, Front Of Block

  • Bleed Off Port:  (Patent Pending) Front Of Block



WHAT YOU GET:

  • Gas Block - Assembled

  • (2) 10-32 x 3/16" Set Screws

  • (1) Gas Tube Roll Pin

  • (1) 3/32 X 6" L-Shaped Hex Key

  • Installation Instructions.

  • Scroll down to order Gas Tube

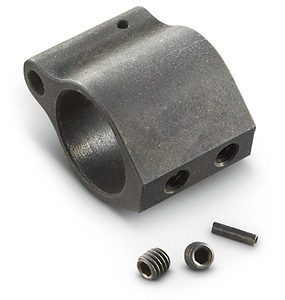

STANDARD LO PROFILE .750 GAS BLOCK

Standard Block: all gas is directed at the carrier through the gas tube



  • Direct Impingement

  • Manufacturer     Cimarron in USA

  • Low Profile         fits most ARs

  • Inside Dia           0.750"

  • Overall Height   1.405"

  • Overall Length   1.0"

  • Mounting Style  Set screw w/pin

  • Material               US steel no junk

  • Finish                   Bare Metal

  • Weight                N/A
